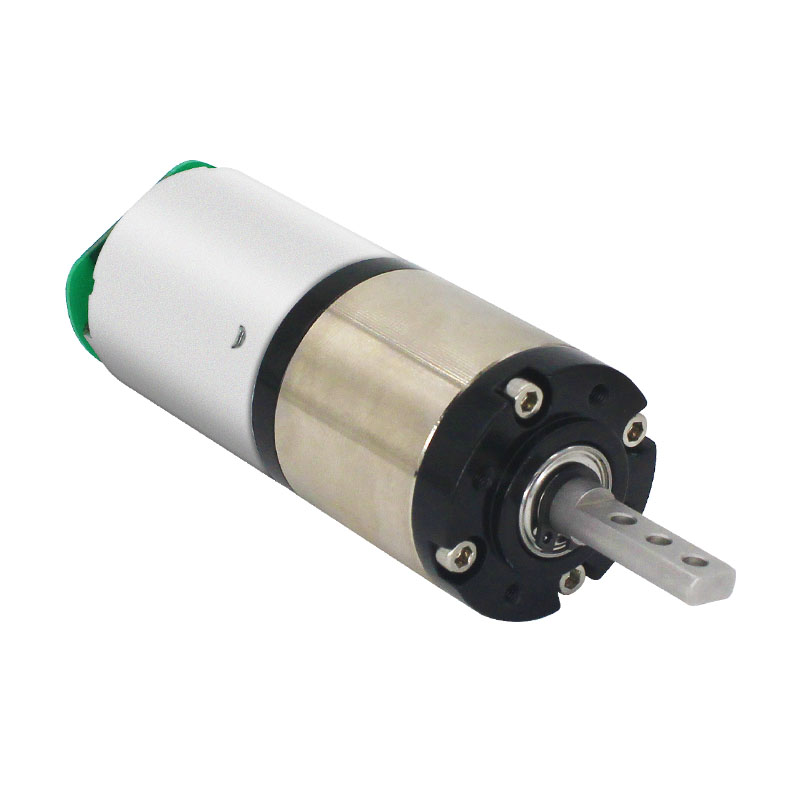

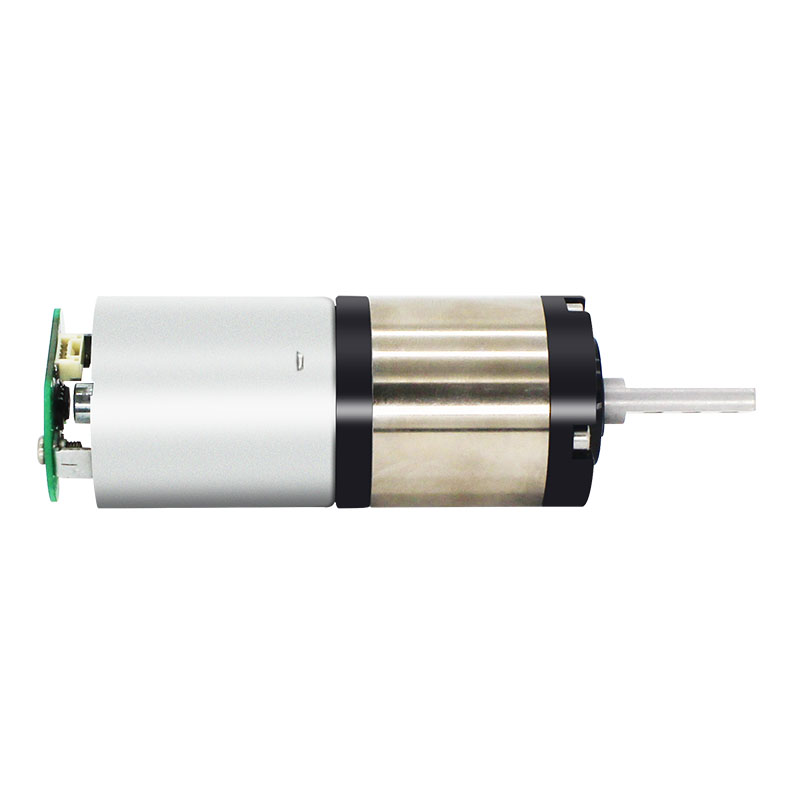

36mm 12V/24V Brushless Reduction Motor With Encoder
  • 36mm 12V/24V Brushless Reduction Motor With Encoder36mm 12V/24V Brushless Reduction Motor With Encoder
  • 36mm 12V/24V Brushless Reduction Motor With Encoder36mm 12V/24V Brushless Reduction Motor With Encoder

36mm 12V/24V Brushless Reduction Motor With Encoder

You Can rest assured to buy 36mm 12V/24V Brushless Reduction Motor With Encoder from Chaoya factory and we can provide professional service and better price for you. This motor has several advantages, including high precision, accuracy, and reliability.

Send Inquiry

Product Description

welcome to wholesale or customized 36mm 12V/24V Brushless Reduction Motor With Encoder from our Chaoya factory at any time.we will provide you with factory discount prices for our products. 36mm 12V/24V Brushless Reduction Motor With Encoder includes an encoder, which is a device that provides an electrical signal corresponding to precise shaft position and speed. With its advanced sensing technologies, the encoder can provide high precision and accuracy, contributing to the motor's overall performance and control. The encoder's feedback signal can help the motor control system to monitor and adjust the motor speed and position accordingly, ensuring precise and accurate motor motion. This makes the motor ideal for applications like robotics, automation, and other industries that require high-precision control.In terms of production, 36mm 12V/24V Brushless Reduction Motor With Encoder is manufactured by a reputable factory in China, with high-quality materials and advanced manufacturing processes, ensuring top-tier quality at a competitive price.  In conclusion, the 36mm 12V/24V Brushless Reduction Motor with Encoder is an advanced and high-performance motor dedicated to offer precise control in various industrial and commercial applications. The encoder feedback signal provides high precision and accuracy, contributing to the overall control and performance of the motor. Furthermore, the motor's efficiency, reliability, and customizable settings make it a popular choice among customers seeking a cost-effective, efficient, and reliable motor solution for their industrial and commercial applications

GearBox  Parameters:

Step  1st step 2nd step 3rd step fourth step fifth step
Length(mm) 24.9 30.9 37.1 / /
Efficience 90% 81% 73% / /
Reducer Ratio 3.75,  5.18 14, 19, 27 53, 73, 100, 139 / /
Rated Turque 0.5~3.5 Kgf.cm 3~12 Kgf.cm 12~50 Kgf.cm / /
Momentary Allowable Turque 7Kgf.cm 20Kgf.cm 80Kgf.cm / /

Remark:

1.Can be equipped with 5#series brushed motor/36#series brushless motor

2.Operation temperature:-40℃~+80℃

3.Output shaft can be customized upon request

Motor Parameters:

Model Voltage(V)  No Load Rotating Speed(rpm)  No-load current(mA) Load torque(gf.cm)  Load Rotating Speed(rpm)  Load Current(A)
BL3640 12 6200 0.25 200 5100 1.5

Motor +GearBox Parameters:
Gear Motor Model Reducer Ratio 5.18 27 53 139 /
36PG-BL3640 No Load Rotating Speed(rpm)  1197 230 117 45 /
Rated Torque(kgf.cm) 0.93 4.05 7.21 18.9 /
Rated Rotating Speed(rpm) 985 189 96 37 /
