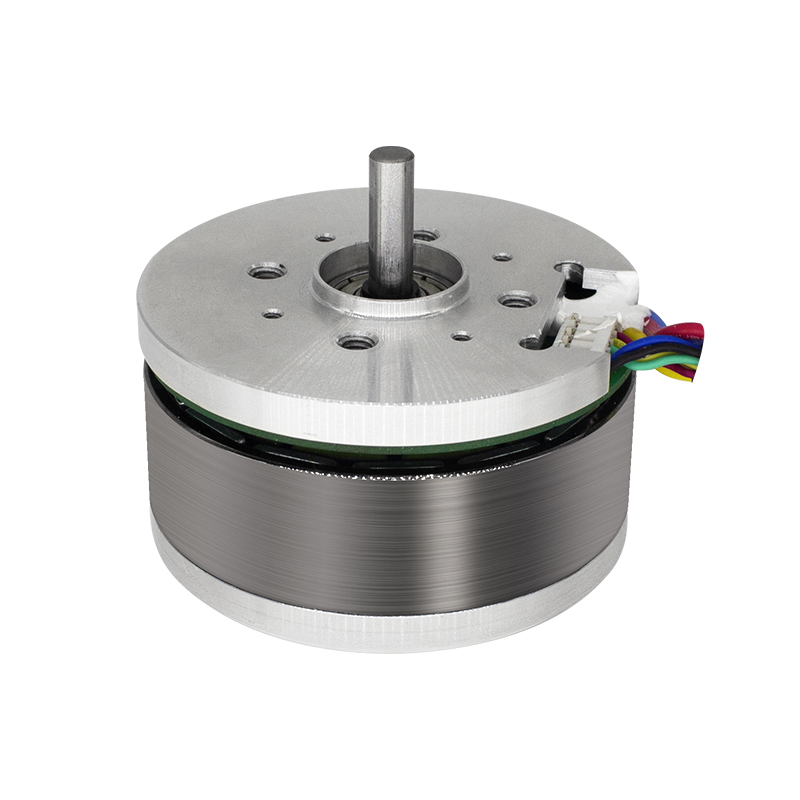

55mm Outer Rotor Brushless DC Motor For Robots
  • 55mm Outer Rotor Brushless DC Motor For Robots55mm Outer Rotor Brushless DC Motor For Robots
  • 55mm Outer Rotor Brushless DC Motor For Robots55mm Outer Rotor Brushless DC Motor For Robots
  • 55mm Outer Rotor Brushless DC Motor For Robots55mm Outer Rotor Brushless DC Motor For Robots

55mm Outer Rotor Brushless DC Motor For Robots

Chaoya,being one of the leading manufacturers of brushless motors in China,has been able to manufacturer 55mm Outer Rotor Brushless DC Motor For Robots having the same performance as the Nidec motor.This motor features an outer rotor design, which not only gives it an exquisite appearance,but also has a big impact on its efficiency. The outer rotor design allows for the bearing to be positioned more outwardly,which becomes a factor in increasing the motor's torque and reducing its resistance.This results in a smoother and more stable operation of the motor, making it ideal for use in robots or other industrial applications that require precision and efficiency.

Send Inquiry

Product Description

Chaoya is a professional China manufacturer and supplier of high quality 55mm Outer Rotor Brushless DC Motor For Robots.If you are interested in 55mm Outer Rotor Brushless DC Motor For Robots products, please contact us. The motor adopts an outer rotor design and uses high-quality materials. It has a beautiful appearance, high efficiency and stable overall performance, It can achieve the same performance as the Nidec motor and is deeply favored by customers. 55mm Outer Rotor Brushless DC Motor For Robots is specially designed for robots and provides the perfect balance between power and control. With its compact size, it can easily fit into any robot without taking up too much space. The motor is also highly efficient, which means it will consume less power and produce less heat, making it a great option for longer use.

The 55mm Outer Rotor Brushless DC Motor For Robots also has a high torque-to-weight ratio, which makes it perfect for robot applications that require a quick and powerful response. It can easily handle large loads and can operate smoothly at high speeds, making it a versatile and reliable option for all your robot needs. If you have the needs of  high-quality external outer BLDC motor for your robot, look no further than the 55mm Outer Rotor Brushless DC Motor For Robots by chaoya. It's the perfect combination of performance,reliability, and cost-effectiveness.Order now and experience the convenience of robots in your life.


Product Parameters

Model Operating Voltage(V) No Load Maximum efficiency Maximum Power Stall Rotating Direction
Current (A) Rotating Speed(RPM) Torque(mN.M) current(A) Rotating Speed(RPM) Power(W) Efficiency Torque(mN.M) current(A) Rotating Speed(RPM) Power(W) Torque(mN.M) current(A)
BL5531 24 0.136 4350 52.89 1.007 3800 21.05 87% 213.89 3.638 2168 48.57 427.8 7.135 CW/CCW
