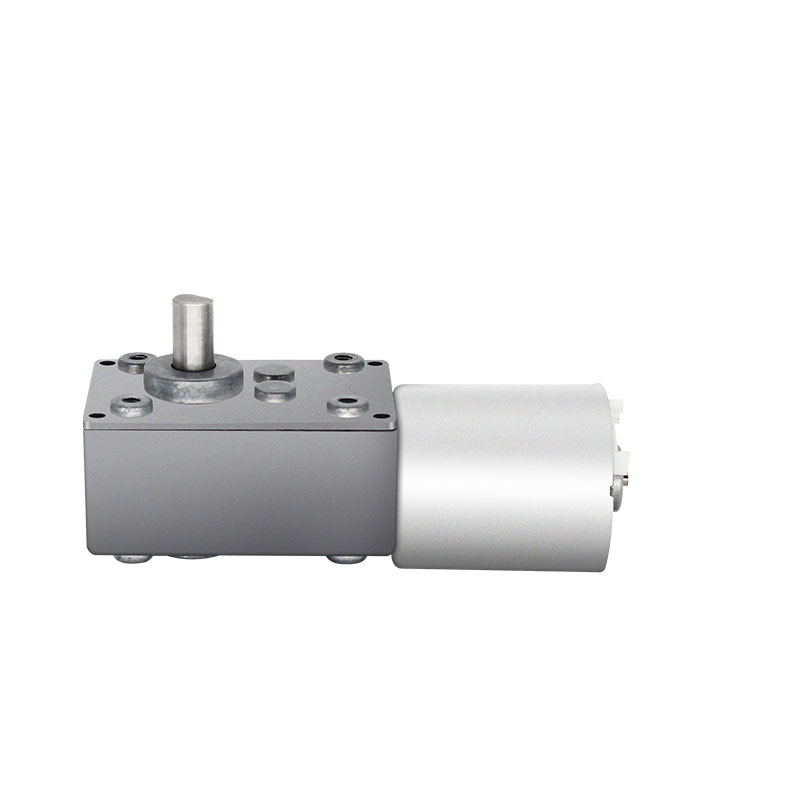

Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor
  • Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox MotorMini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor

Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor

welcome to wholesale or customized Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor from our factory at any time,we will offer you with factory discount prices for our products. Chaoya is worm gearbox motor manufacturers and suppliers in china.The Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor is a small and high-performance motor designed to provide efficient and reliable performance for various industrial and commercial applications. The motor features a worm gear reduction system, which enables the transmission of torque between right angles.

Send Inquiry

Product Description

Buy high-performance Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor from our Chaoya factory in china, the worm gear reduction system works by using a worm gear that rotates a worm wheel. The worm gear has a cylindrical screw thread that meshes with the worm wheel teeth, enabling torque transmission between right angles. The worm gear system's distinct advantage is that it allows high torque transmission with a low probability of backdriving. Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor’s 90-degree output shaft design makes it an idea choice for compact space-constrained applications requiring torque transmission between right angles. The worm gear reduction system and advanced control technologies also ensure precise speed and torque control, resulting in optimal efficiency and reliability. In summary, the Mini 90 Degree 32mm Shaft 24V Micro Worm Gearbox Motor is an advanced and high-performance motor with a worm gear reduction system, enabling torque transmission between right angles. Its advanced control technologies and low noise ensure precise speed and torque control, resulting in optimal efficiency and reliability. The worm gear motor's distinct advantage is that it allows high torque transmission with a low probability of  backdriving, making it popular in various industrial and commercial applications.

GearBox  Parameters:

Step  3rd step fourth step fifth step Sixth step Seventh step
Length(mm) 46 / / / /
Efficience 50% / / / /
Reducer Ratio 47, 65, 162, 224, 284, 350 / / / /
Rated Turque
Momentary Allowable Turque

Remark:

1.Can be equipped with 2#series brushed motor/24#brushless motor

2.Operation temperature:-40℃~+80℃

3.Output shaft can be customized upon request

Motor Parameters:

Model Voltage(V)  No Load Rotating Speed(rpm)  No-load current(mA) Load torque(gf.cm)  Load Rotating Speed(rpm)  Load Current(A)
RC370 24 5300 60 37 4700 0.3

Motor +GearBox Parameters:

Gear Motor Model Reducer Ratio 47 65 162 224 284 350 / / / /
32GZ-RC370 No Load Rotating Speed(rpm)  113 82 33 24 19 15 / / / /
Rated Torque(kgf.cm) 0.87 1.2 3 4.14 5.25 6.48 / / / /
Rated Rotating Speed(rpm) 100 72 29 21 17 13 / / / /
