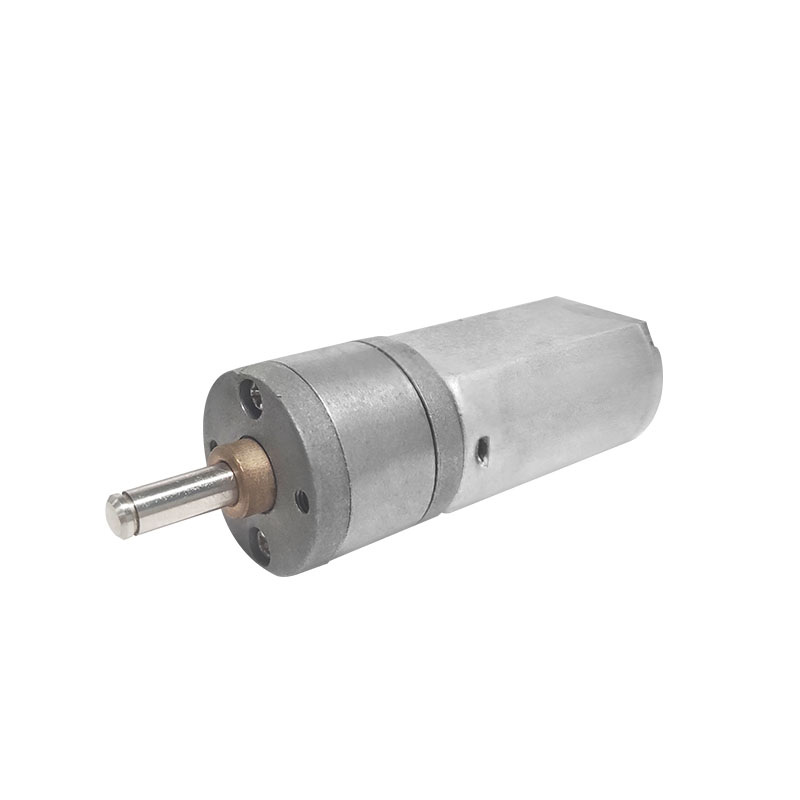

20mm 12V/24V/36V Spur Gearbox Brushed DC Motors
  • 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors20mm 12V/24V/36V Spur Gearbox Brushed DC Motors

20mm 12V/24V/36V Spur Gearbox Brushed DC Motors

You are warmly welcomed to come to our Chaoya factory to buy the latest selling, low price, and high-quality 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors, we look forward to cooperate with you.The 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors are a popular option for various small-scale industrial and commercial applications. Over the years, the demand for customizations of these types of motors, especially the reduction gearbox solutions, has increased, making them more adaptable and flexible to different applications' specific needs.

Send Inquiry

Product Description

Chaoya is a china supplier who produces 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors with many years.we strongly hope to build bussiness relationship with you. This type of motor is available in a range of gear ratios, allowing users to select the optimal ratio, making it fit for specific applications. 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors has various voltage options, such as 12V, 24V, and 36V, allows users to select the optimal voltage for their specific applications, contributing to greater efficiency and reliability. The use of a brushed DC motor also allows for greater control and precision, making it an ideal choice for applications requiring high precision movements, such as in robotics, automation, and other similar applications. 20mm 12V/24V/36V Spur Gearbox  Brushed DC Motors  is produced by reputable factory  in China, The use of high-quality materials and advanced manufacturing techniques ensure products that meet or exceed customer expectations at a competitive price. In conclusion, the 20mm 12V/24V/36V Spur Gearbox Brushed DC Motors are known for their compact size, customizability, and efficiency. Their advanced control technologies, high torque, and flexible voltage options make them an optimal choice for various small-scale industrial and commercial applications.

GearBox  Parameters:

Step  3rd step fourth step fifth step Sixth step seventh step
Length(mm) 15.8 17.5 19.2 20.9 22.6
Efficience 68% 60% 53% 46% 41%
Reducer Ratio 9, 12.5 22, 25, 31 50, 62.5, 78 100, 125, 156, 195 255, 488
Rated Turque
Momentary Allowable Turque

Remark:1.Can be equipped with 1#series brushed motor/brushless motor

            2.Operation temperature:-40℃~+80℃

            3.Output shaft can be customized upon request

Motor Parameters:

Model Voltage(V)  No Load Rotating Speed(rpm)  No-load current(mA) Load torque(gf.cm)  Load Rotating Speed(rpm)  Load Current(A)
FF180 12 9000 80 55 5100 0.4

Motor +GearBox Parameters:

Gear Motor Model Reducer Ratio 9 12.5 22 31 50 78 100 195 488 /
20GA-FF180 No Load Rotating Speed(rpm)  1000 720 409 290 180 115 90 46 18 /
Rated Torque(kgf.cm) 0.34 0.47 0.73 1.02 1.46 2.27 2.53 4 4 /
Rated Rotating Speed(rpm) 567 408 232 165 102 65 51 26 10 /
