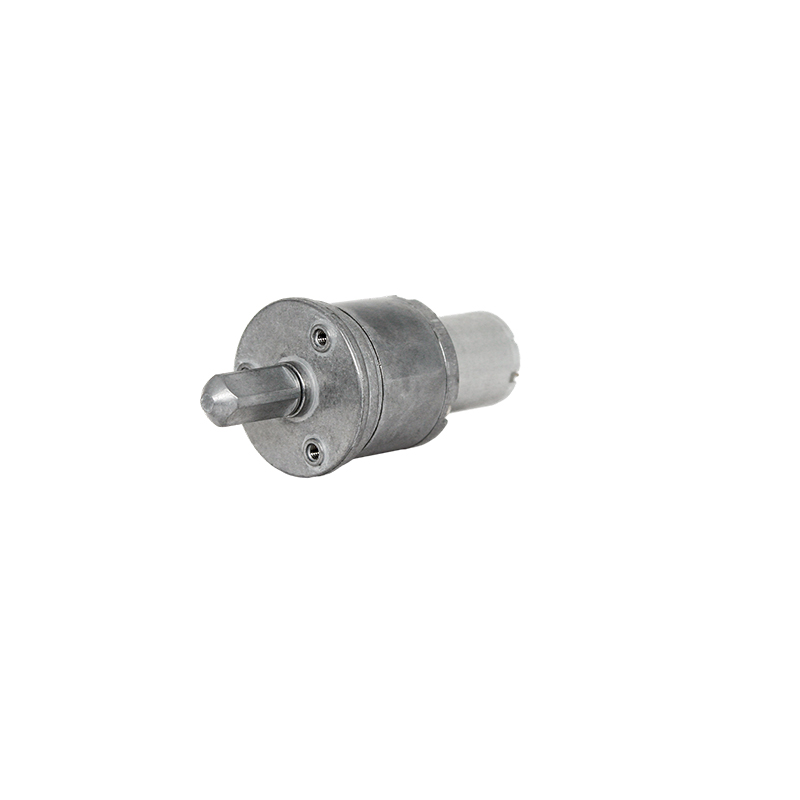

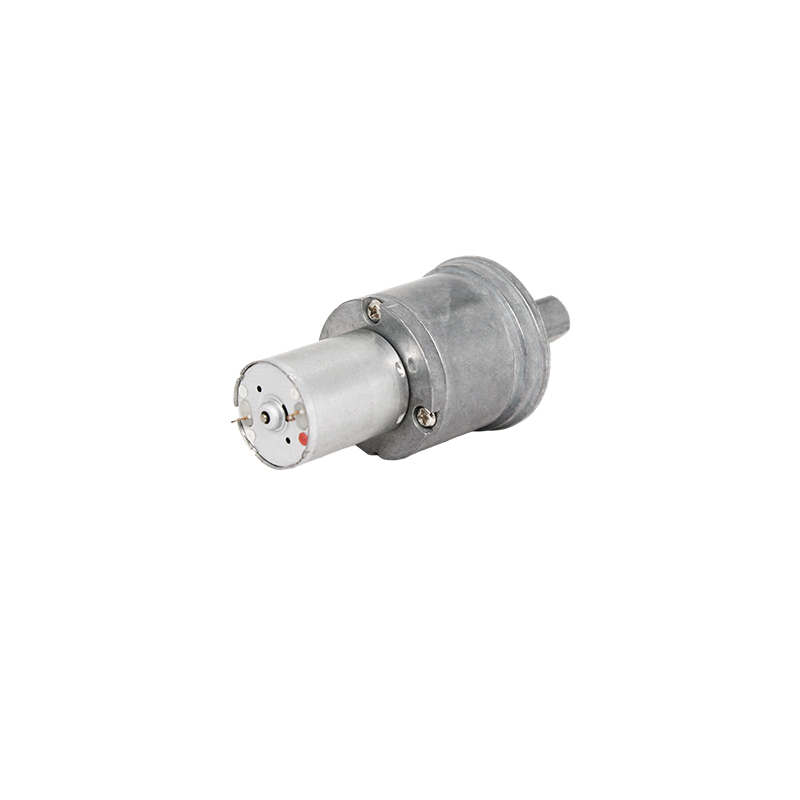

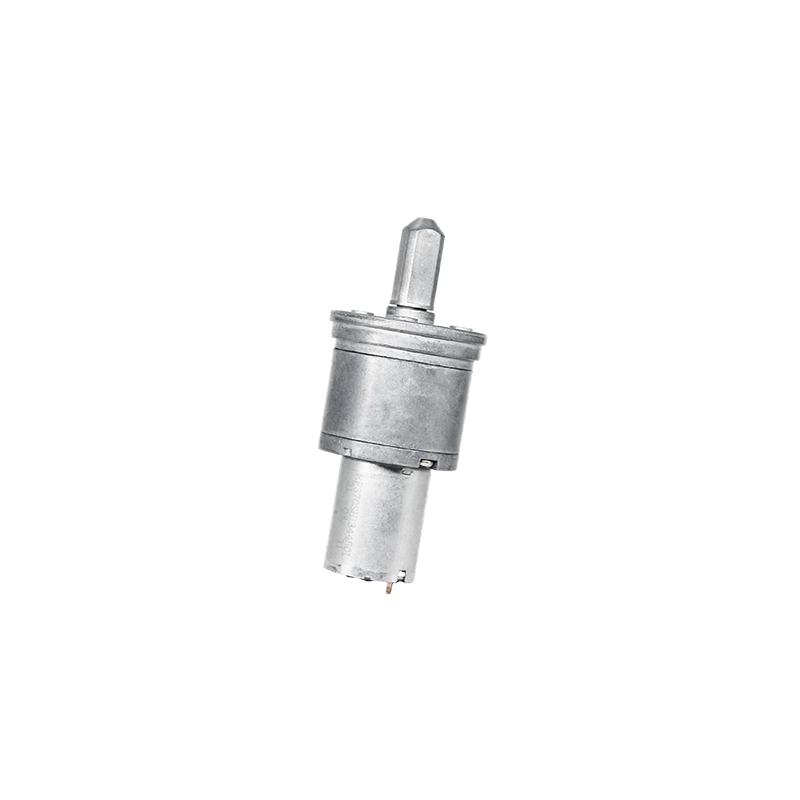

Chaoya is a China factory with many years of BLDC motor production,The 370 Bruhsed DC Motors With Gearbox For Feeding Field is a brushed DC motor with a diameter of 40mm gearbox, ideal for use on farms and Feeding systems in livestock farming. The 370 brushed DC motors with gearbox for feeding field is designed and built to provide the necessary power and torque for the feeding system,the motor can operate at low speeds, making it ideal for moving feeders and dispensers. The gearbox is designed to reduce motor speed and increase torque to move heavy loads, helping to make feeding systems more efficient and cost-effective.
Chaoya Factory is a china famous factory which specialized in the production of DC motors for many years. It has developed and manufactured the 370 Bruhsed DC Motors With Gearbox For Feeding Field specifically for the feeding system, and has accumulated rich experience in the field of animal husbandry and feeding. Chaoya has partnered with Zhengbang Group ,China's leading poultry and pork producer, to help improve its feeding systems. The 370 Bruhsed DC Motors With Gearbox For Feeding Field plays a vital role in the automation of the Zhengbang feeding system. The motor is a brushed DC motor with a 40mm gearbox. It has high torque and can operate at low speeds. It can provide the necessary power and torque for mobile feeders and distributors, making it ideal for various feeding systems.
Feeding systems are vital to the growth and health of livestock and poultry. Automation makes feeding systems more efficient and cost-effective, and electric motors play a vital role in this development. Chaoya’s experience in producing motors and cooperation with Zhengbang Group highlights the effectiveness of motors in automating feeding systems. So, if you are looking for a reliable, efficient motor for your feeding system, the 370 Bruhsed DC Motors With Gearbox For Feeding Field is an excellent choice.
| Model | Operating Voltage(V) | No Load | Maximum efficiency | Maximum Power | Stall | Rotating Direction | |||||||||
| Current (A) | Rotating Speed(RPM) | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Efficiency | Torque(mN.M) | current(A) | Rotating Speed(RPM) | Power(W) | Torque(mN.M) | current(A) | |||
| RC370 | 12 | 0.1 | 7500 | 7.37 | 0.626 | 6467 | 5.00 | 66% | 26.75 | 2.009 | 3750 | 10.51 | 53.51 | 3.92 | CW/CCW |
| RC370 | 24 | 0.06 | 5800 | 7.203 | 0.236 | 4625 | 3.489 | 62% | 17.78 | 0.498 | 2900 | 5.4 | 35.56 | 0.93 | CW/CCW |
